Description

3 years warranty

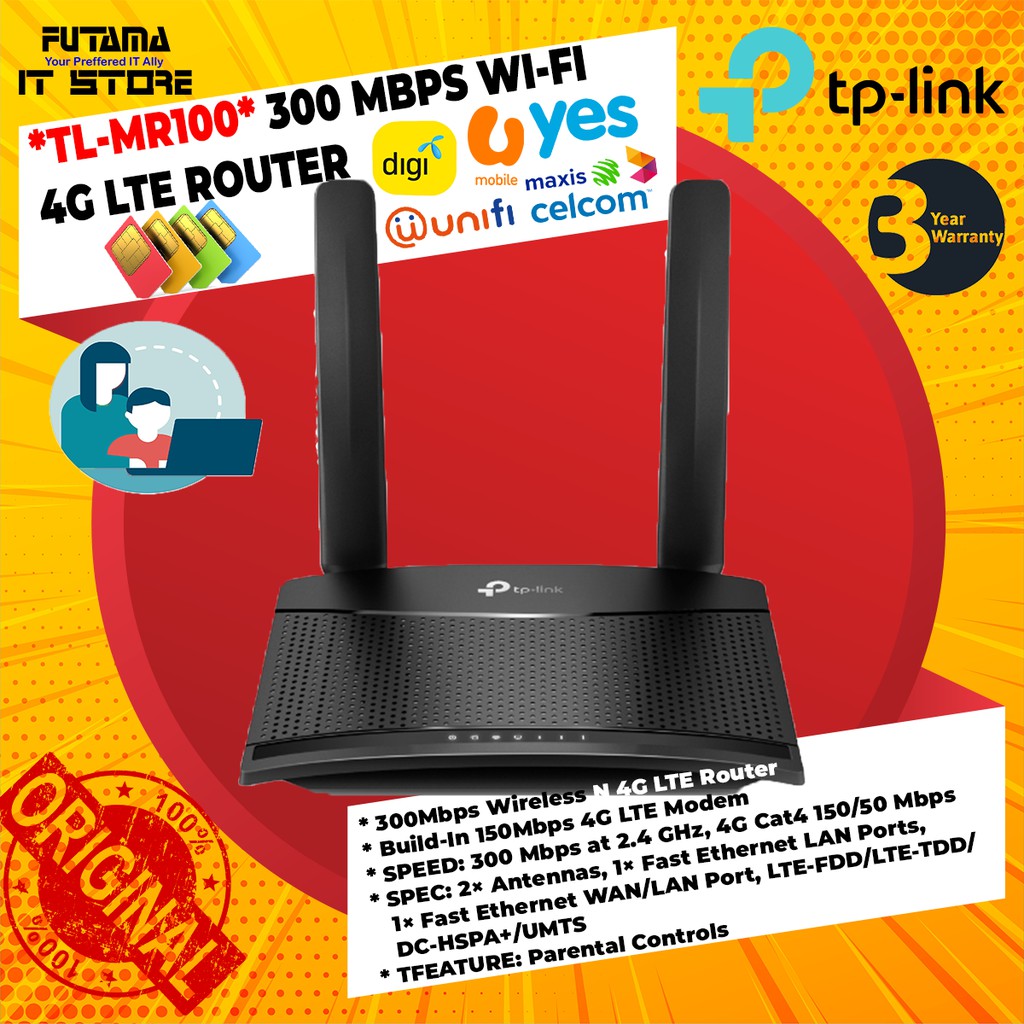

Latest model with detachable 4G LTE antennas

Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps

Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests

Support most Malaysia’s Telco, inlcuding UniFi Air, DiGi, Maxis, Umobile, Celcom and etc…*

* Please make sure the plan you subscribed allow you to use on router and hotspot.

Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas

Wi-Fi router mode – Plug an Ethernet cable into the LAN/WAN port for flexible access as a backup option if you can’t get a 4G connection

HARDWARE FEATURES

Interface:

3 10/100Mbps LAN Ports,

1 10/100Mbps LAN/WAN Port,

1 Micro SIM Card Slot

Button: WPS/Reset Button, WiFi On/Off Button, Power On/Off Button

Antenna: 2 Detachable External 4G LTE Antennas

Antenna Type: V3/APAC: 2 Internal 4G LTE Antennas

V4/V2/V1: 2 Detachable 4G LTE Antennas

WIRELESS FEATURES

Wireless Standards: IEEE 802.11b/g/n

Frequency: 2.4 GHz

Signal Rate: 300 Mbps

Reception Sensitivity:

11g 54M: -74 dBm

11n HT20: -71 dBm

11n HT40: -68 dBm

Transmit Power: < 20 dBm (2.4 GHz)

Wireless Functions: Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless

Statistics

Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type 4G: FDD-LTE: B1/B3/B5/B7/B8/B20 (2100/1800/850/2600/900/800 MHz)

TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz)

3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

SOFTWARE FEATURES

Security: IPv4 SPI Firewall, IP and MAC Address Binding

Operating Modes: 3G/4G Router, Wireless Router

WAN Type: Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management Local Management, Remote Management

DHCP Server, DHCP Client List, Address Reservation

Port Forwarding ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS DynDns, NO-IP

Protocols IPv4, IPv6

Guest Network 2.4 GHz Guest Network

Administration Upgrade Firmware, Factory Default, System Log, Diagnostic Tools

OTHERS

Package Contents:

300 Mbps Wireless N 4G LTE TL-MR100

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide

Requirements

Micro SIM Card
