Description

3 years warranty

Work with UniFi, HyppTV, Maxis Fibre, Time Fiber

Support WiFi bandwidth up to 800Mbps

Dual-Band Wi-Fi 6: Equipped with the latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.

Next-Gen 1.5 Gbps Speeds: Enjoy smooth streaming, downloading, and gaming all without buffering with Wi-Fi speeds of 1.5 Gbps.†

Connect More Devices: Wi-Fi 6 technology communicates more data to more devices using revolutionary OFDMA technology while simultaneously reducing lag.△§

Triple-Core Processing: The 1.5 GHz Triple-core CPU ensures communications between your router and all connected devices are smooth.

Extensive Coverage: Beamforming, independent FEM, and four antennas combine to deliver focused reception to devices far away.

Increased Battery Life: Target Wake Time technology reduces your devices’ power consumption to extend their battery life.‡

Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.

Backward Compatible: Supports all previous 802.11 standards and all Wi-Fi devices.

HARDWARE FEATURES

Processor: 1.5 GHz Triple-Core CPU

Interface:

1× 1000/100/10 Mbps WAN Port

4× 1000/100/10 Mbps LAN Ports

Button:

WPS/Wi-Fi On/Off Button

Reset Button

Power On/Off Button

LED On/Off Button

Antenna: 4× Fixed Omni-Directional Antennas

WIRELESS FEATURES

Wireless Standards: Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

Frequency: 5 GHz, 2.4 GHz

Signal Rate: 1201 Mbps (5 GHz), 300 Mbps (2.4 GHz)

Compatible with 802.11a/b/g/n/ac Wi-Fi standards

Transmit Power:

CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)

FCC:<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)

Wireless Functions

Enable/Disable Wireless Radio, DFS(JP Version Only), Guest Network, MU-MIMO, OFDMA

Wireless Security WEP

WPA

WPA2

WPA3

SOFTWARE FEATURES

WAN Type: Dynamic IP/Static IP/PPPoE

Management:

Parental Control

Guest Network

DHCP: Server, DHCP Client List, Address Reservation

Dynamic DNS: DynDns, NO-IP, TP-Link

Guest Network:

2.4 GHz guest network × 1

5 GHz guest network × 1

NAT Port Forwarding, Port Triggering, UPnP, DMZ

OTHERS

Package Contents:

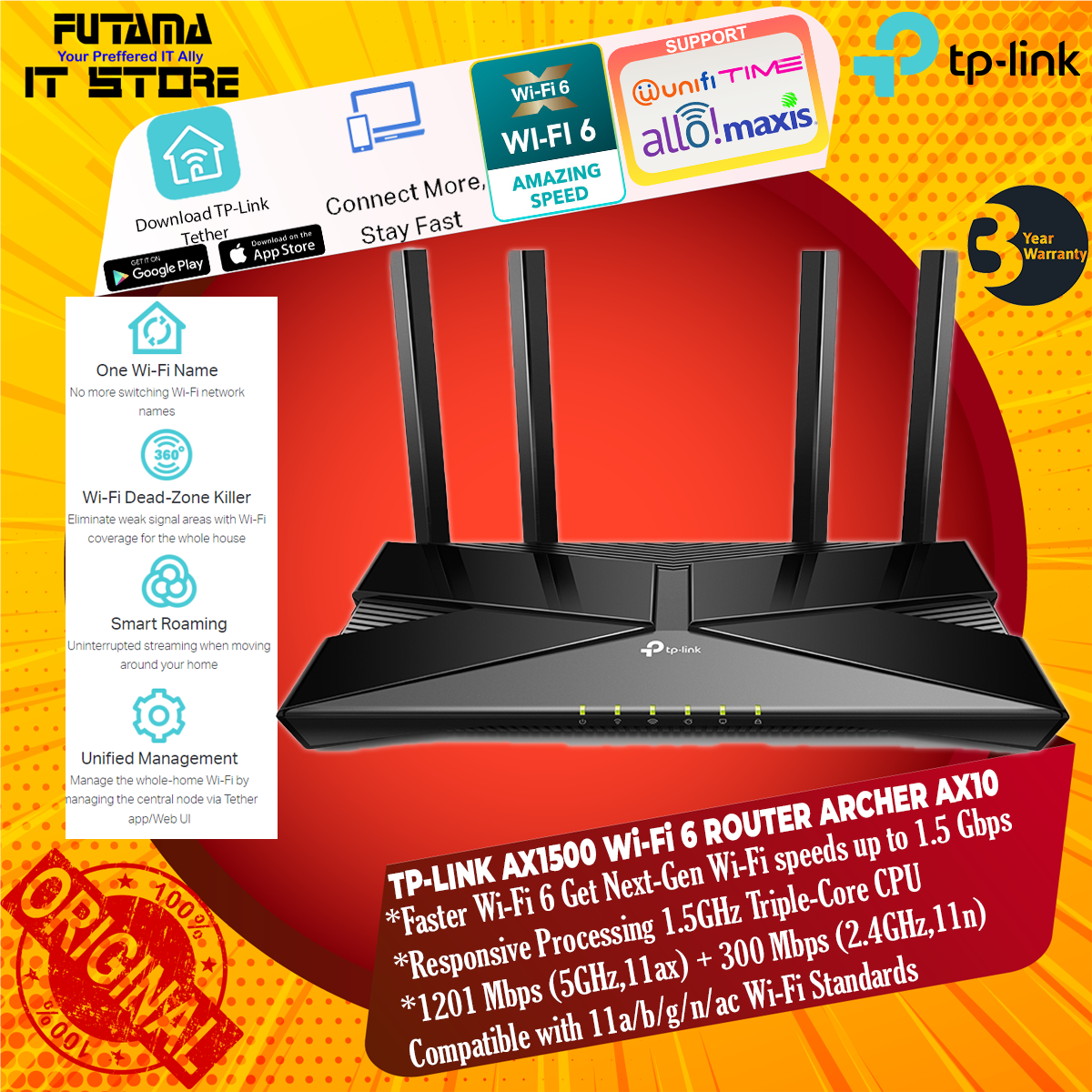

Wireless Router Archer AX10

Power Adapter

RJ45 Ethernet Cable

Quick Installation Guide
